Revolutionary Laser Technology
Extending its full line of revolutionary laser projectors, the world’s No.1 DLP brand BenQ presents LU960ST, especially designed for short throw fixed lens installation and reserves installation flexibility to merge into limited space.
Superior Laser Brightness
Zero-deviation alignment of laser diodes boosts luminous flux into the light tunnel, improving light efficacy to 5200 ANSI, offering superior image quality in bright environments with high brightness.
WUXGA Resolution for Enhanced Detail and Expanded Content
With an impressive WUXGA (1920 x 1200) native resolution that far exceeds Full HD 1080p, BenQ LU960ST laser projector offers greater details and stunning image clarity when projecting high resolution images.
Fast Mode Provide the Most In-time Visual Feedback for Your Simulator
System latency, which is the lag between the time an operator applies an input and the simulator responds to provide both visual and motion cues, is inevitable in simulators. As a part of visual systems in simulators and based on expertise gained from experience with near-zero latency displays used in gaming, LU960ST employs a Fast Mode to provide latency as low as 16.67ms*(@WUXGA 60Hz). and 8.33ms (@WUXGA 120Hz)
Superior Dustproofing for Severe Conditions with IP5X Certification
LU960ST’s design of sealed laser modules and enclosed light engines protects the DMD chip, color wheel sensor, laser package, and other optical components, prolonging the projector’s lifespan up to 20,000 hrs.
Anti-Dust Accumulation Sensor to Resist Dust Buildup
Incorporating a color wheel sensor with an ingenious anti-dust buildup features, BenQ LU960ST prolongs optimal performance by repelling dust that can accumulate on traditional sensor to block the IR signal and cause flickering, abnormal colors, or even shutdown.
24/7 Operation
BenQ laser light source supports continuous 24/7 operation and is suitable for public display applications in museums and exhibitions. Users can choose from three different light source modes to optimize energy consumption and delivers up to 70,000 hours under Dimming Mode.
Superior Performance
Dual synchronized color wheels utilize an additive yellow segment, stimulating precise RGBY spectra for optimal chromatic performance.
Superior Durability for Long Lasting Vibrant Color
BenQ laser projectors run on Academy Award-winning DLP technology to deliver long-lasting and reliable color for the life of the projector. The DLP chip is rated for 200,000 hours and will display stunning whites and accurate colors without the risk of yellowing over time.
High Quality Viewing Experience for Training Fidelity
High Brightness Vivid Clarity in Bright Ambient Environments
LU960ST’s 5500lm high brightness produces wondrous displays in bright, compact exhibition spaces with superb image quality.
Cinematic Grade 92% Rec.709 Color Coverage for Optimal Color Performance
LU960ST’s powerful laser projection utilizes a dual color wheel system to produce unparalleled color performance that achieves a 92% Rec.709 color coverage. By increasing color ratios and the purity of RGBY color, LU960ST dramatically enhances color saturation to ensure superior presentation quality.
Superior Installation Flexibility in Limited Spaces
Highly installation-flexible for front and floor applications, this short throw DLP projector is the best choice for indoor simulation training and commercial space exhibitions.
360° and Portrait Projection Accommodate Different Spaces
Laser technology guarantees reliable projection from any angle. Dynamic installation options such as 360° rotation and portrait applications, allows projection onto ceiling, walls, floors or angled signage.
Short Throw Design for Unobstructed Viewing Without Space Constraints
Equipped with a TR 0.77-0.84 short-throw zoom lens to create up to 200-inch sharp and clear images 3.3 to 3.6 meters away. This enables the audience to stand closer to the screen without casting a shadow.
Standard Throw Projector
Short Throw Projector
Zoom and Lens Shift for Mounting Flexibility
The LU960ST features both a 1.1X zoom function and vertical/horizontal lens shift to enable you to mount the projector in a protected area, while still enabling you to have a fully aligned image on your screen. You can move the image up and down up to 62% of the screen height – and adjust the horizontal position by 24% for an off-axis mounting location. The zoom lens can enlarge or reduce the image to enable you to move your mounting position as much as a foot on a fourteen-foot-wide screen.
Large 2D keystone + Corner Fit
Digital trapezoid correction function allows users to correct images easily. Use the remote control, and you can correct the images in a few clicks. Besides, Corner Fit allows users for final fine-tuning.
White Balance Calibration for Seamless Edge Blending
BenQ exclusive white balance adjustments can reduce white balance variables between images projected from different projectors to such a low level that the most people cannot see any difference. This allows for seamless and accurate picture quality without disruptive discrepancies.
Ensure Consistent Brightness Blending with Custom Light Mode
Custom Light Mode modulates light power output from 25% to 100% at a 1% rate, optimizing the projected image in a variety of ambient lighting situations. It is especially useful for blending consistent brightness across multiple projections.
Gamma Selection
Select Gamma for your preference and optimizing image quality between input source and picture brightness.
Remote Control Projector ID Setting for Independent Control
With remote controller ID pairing avoids signal interference with multi-projector setup on one location. The wired remote control feature also improves the installation stability when adjusting projector placement.
Reliable Lens Lock & Metal Lens Barrel
Designed with the Lens Lock that can fix the final position, and focus of the lens, avoiding the readjustment effort if any mistouching. In addition, the metal barrel lens helps the zoom and focus adjustment to be more stable and accurate compared to a plastic lens.
BenQ In-house LAN-Based Control System
BenQ DMS Local is Device Information and Management software for use with the Windows operating system that also supports Agent Mode, allowing you to integrate your DMS Local settings with the DMS Cloud.
Network/Web Control
BenQ LU960UST2 laser projectors are compatible with Creston, AMX and PJ Link control systems for convenient system integration with various third-party components for centralized management of multiple projectors at less cost.
High Resolution and Accurate Color Transmission
HDMI In/ out
HDMI 2.0 cable can handle 18Gbps bandwidth, allowing for 4K 60Hz plus HDR metadata at low latency and faster refresh rates.
DisplayPort
The high bandwidth of DisplayPort 1.2a allows increased resolutions, higher refresh rates, and greater color depth. In addition, the dual barbs on the connector provide a friction lock, and an option for a mechanical latch.
3D Sync In /3D Sync out
Connect up to 4 projectors and project 3D content together via a single PC.

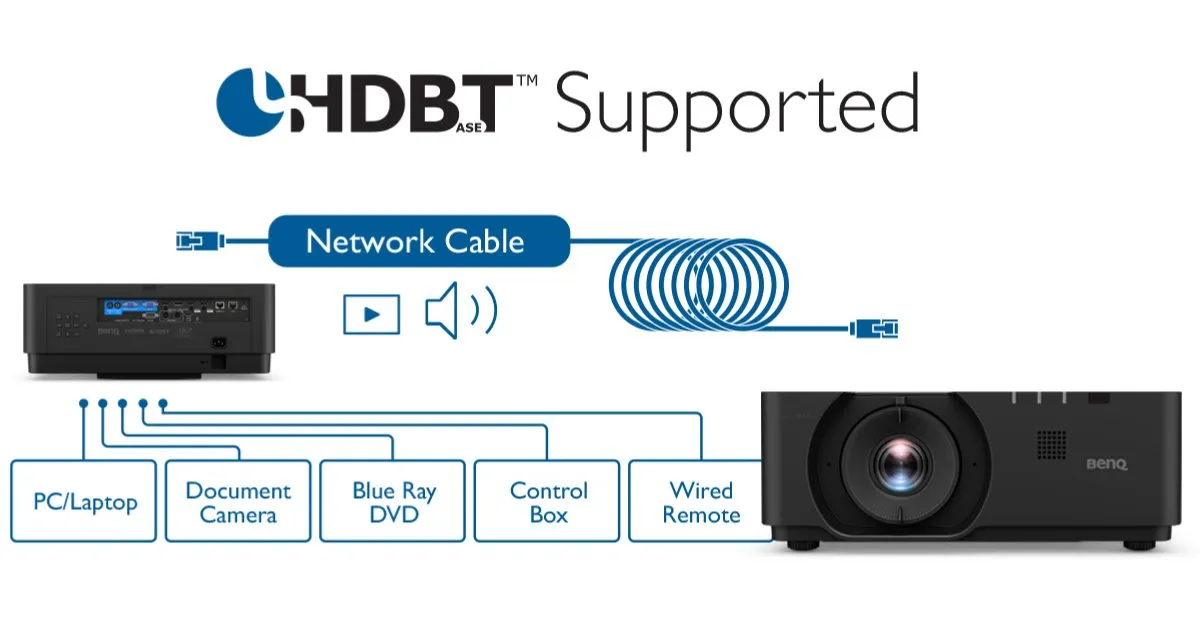

HDBaseT
HDBaseT connectivity combines Video, Audio, RS-232 and LAN control signals from multiple sources into a single RJ-45 cable, ensuring seamless transmission at up to 100 meters.
