ScreenTechnics ElectriCinema Large Venue Screens

Brochure

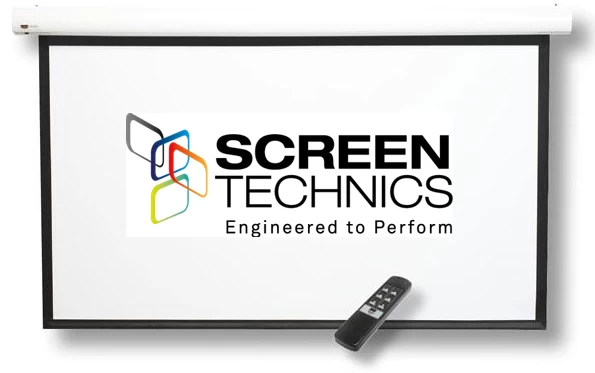

ElectriCinema Large Venue Motorised Screen

The ElectriCinema Large-Venue Type-D based on the world class ElectriCinema series of projection screens. Designer Style Motorised Projection Screen with Intergrated IP, 12v Trigger, contact closure & IR Remote Controlv Trigger and Link Switching to other Connect controlled devices

These features being the internally mounted Connect Motor Control Device and standard IR remote control.

Description: Designer Style Motorised Projection Screen with Integrated IR ?Remote Control.
Head Box: Colour to be specified at time of order, standard powder Coat options are White Ripple, Silver or ?Black. Please seek advice from the sales office if a custom powder coat colour is required.
Surface: Welded MW PVC
Borders: 50mm Sides & Bottom, with top leader to be nominated at time of order.
Optional Top Leader: Please seek guidance from the sales office on maximum available leader lengths on any ElectriCinema XL screen.
Brackets: M10 Load rated eye bolts, requires at least 6 fixing points.
Sizes: 200” Diagonal to 300” Diagonal.
Options: Extra Top Masking - RF RTS Remote or 4 Core Wall Switch.

ElectriCinema Large Venue available in Sizes up to 200" to 375” Diagonal, Connect Control System with IR Control and contact close, Designer Good Looks.

Applications

Home Theatre, Boardroom Presentations, Educational & Training Facilities.

Projection Surface		Screen Border		Housing	Operation
Colour	White	Colour	Black	Head Box, Matt Black, Rippled Powder Coated	Powered
Gain	1.1	Leader	300mm
Material	PVC	Installation		Control
Surface	Smooth	Wall / Ceiling		Remote
